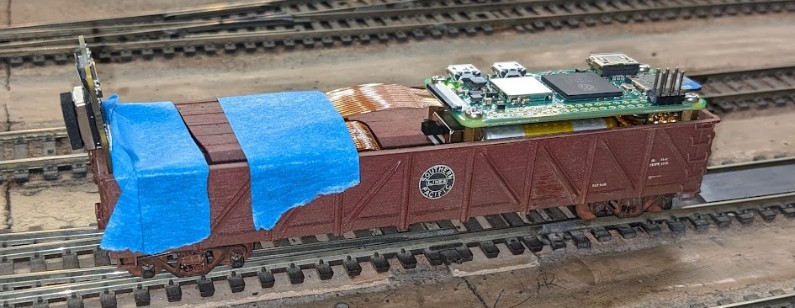

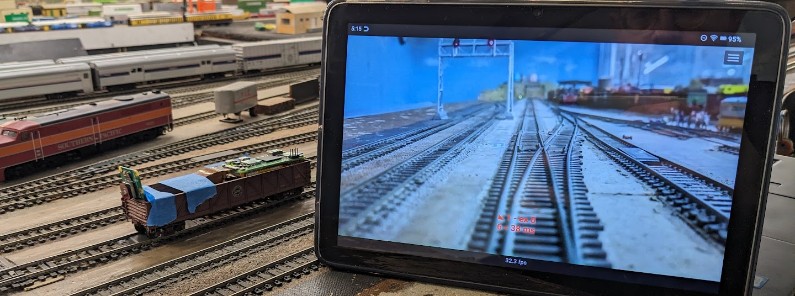

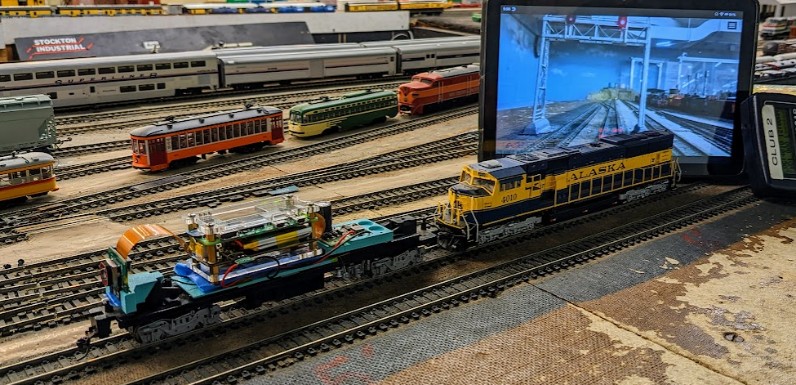

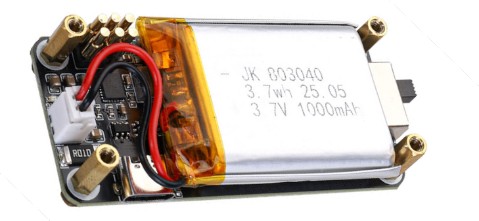

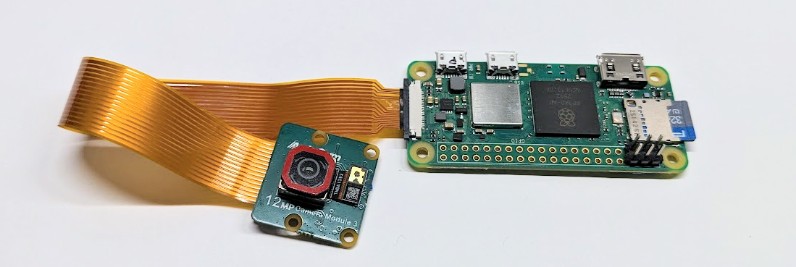

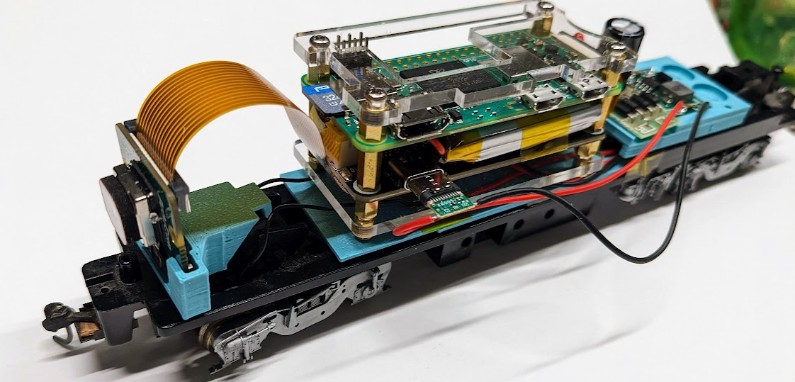

I have detailed in a previous post how I create my “car/cab ride” videos: a Mobius Maxi 4K is placed on a flat car, and either pulled or pushed by the train using a custom “3D-printed rod” draw-bar connector, then I use a DaVinci “Fuse” script that I wrote to remove that gray rod from the image.

That DaVinci plugin has a lot of idiosyncrasies though. It’s based on a line-per-line contrast analysis, so it has no semantic of where the rod vs the rails are. When the rod gets very close to the rails in a curve, that analysis totally fails. And the backfill is extremely basic -- it’s a simple horizontal interpolation between both sides of the detected rod, line per line. That’s why it creates these horizontal bands in the middle, as there’s no pattern to it.

So I’m always on the lookout for other alternatives. Obviously, AI is all the hype these days, so let’s have a look at what we can do with a basic prompt in ChatGPT vs Gemini:

OK, that was quite interesting. First, Gemini produced the resulting image in a couple seconds whilst it took ChatGPT almost a minute to give me back an image. Comparing both images:

• Gemini: The result is pretty much exactly what’s expected. The gray rod is gone, and the track in between has been not only smoothed, but its pattern looks actually pretty impressive. We can also see that the rod shadow has been removed, something my plugin can’t do.
• ChatGPT: For some reason, the image is zoomed in, and the aspect ratio changed. The gray rod is gone, and the track in between the rails looks really good. The rod shadow is also gone. But… there’s more. Other parts of the image have changed. The ceiling on the left side no longer has ceiling lights, and the entire lighting of the image has consequently darkened. The spot light on the top left has changed shape. All the text has become some kind of gibberish and the engine itself has somewhat changed, it’s more vertical. The stairs on the platform have entirely vanished! Finally… and it took me a few seconds to realize, the entire image is now super crisp. The focus depth from the camera is gone, and everything including the baggage car on the left and the track is in focus. Image details have literally been added that did not exist before.

One of the things I get from the new version of Wazz, the dashboard keeping track of the automation, are timings when the automation computer starts in the morning:

So here are the events listed above:

• The Automation Computer is powered on by the museum staff… Even though I run a pretty barebone version of Debian on it, it takes some time for Linux to boot and go through the systemd init. I don’t have that timing in the events above. Measuring it with a watchclock a while ago, I believe it’s in the 10-20 seconds range.
• 9:47:25am: The “computer consist” event is sent as soon as we reach runlevel 5, the multi-user GUI. That starts a script which runs a git update on the JMRI roster, and then starts the JMRI software.
• 9:48:46am: 81 seconds later, the “conductor running” event indicates that the Conductor add-on is loaded in JMRI. These 81 seconds correspond to the loading time of JMRI, when it invokes a Jython add-on trampoline that loads the Kotlin program Conductor in the JVM. It’s all a game of classloaders and stuff, and they essentially all run in the same JVM. But still, we basically have little control on that 81 seconds timing. It’s what JMRI takes to load.
• 9:49:15am: 29 seconds later, the “conductor script” event indicates that Conductor is loading the Kotlin Script for the actual automation script. That includes Conductor opening its UI, loading the SVG map, and compiling the automation script into the Kotling Scripting Engine takes about 20 seconds just by itself.
• 9:49:15am: Less than a second later, the “toggle” events are emitted by the automation script as soon as it starts executing. At that point, the automation is “live”.

In total, it takes about 2 minutes from cold “computer off” to the automation being active.

And to be clear, that's one minute too much

“Wazz” is my own web-based dashboard to get an instant overview of the automation at the Randall Museum Model Railroad. Last month, I started revamping the web site with a more modern implementation, and after about a month of work, I’ve just finished this major rework on the status dashboard with the following architecture:

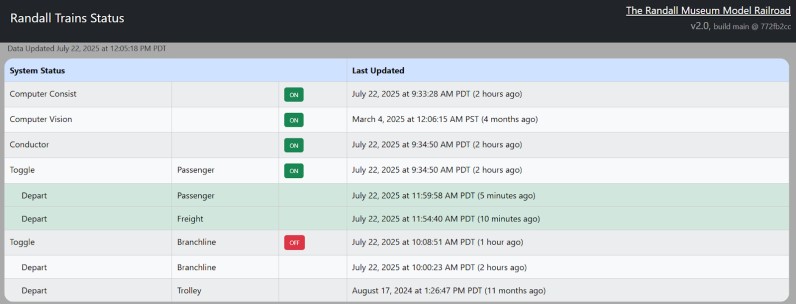

This now results in a web page giving a dashboard like this:

This page gives me an overview of which computers are on, wherever the automated lines are active (the “toggles”), and which train ran last, and whether it completed its run properly.

The major visible part is this new “performance” tab that lets me see how the trains behave on their respective route:

“Wazz” is my own web-based dashboard to get an instant overview of the automation at the Randall Museum Model Railroad. It used to be a crummy javascript single-page web page that I had hacked quickly over the years. I decided to entirely rebuild it using React, TypeScript, and Vite.

The source is available on the here: https://github.com/model-railroad/conductor/tree/main/web/wazz

And the web app is deployed here: https://www.alfray.com/trains/randall/wazz/

I used JetBrains’ WebStorm as the IDE; that was a nice step up from my usual VSCode setup. Not much to discuss on the implementation side -- it’s really your typical no-thrills React-TypeScript web app.

The Conductor automation software exports a JSON status, which this reads, and displays. There’s an automatic refresh every 10 minutes. Note that this isn’t hosted in any cloud -- it totally relies on the automation computer at Randall having wifi access to the internet. The uptime for that connection is around 95%. Since it’s mostly a remote view dashboard, I don’t need a perfect uptime, nor do I expect it to have a high traffic load.

I’m essentially the sole user of that dashboard. Which also explains why the display may look cryptic -- it displays exactly what I want the way I want it, with no effort to be legible by people unfamiliar with the Conductor software.

This is the display I use for Distant Signal:

• https://www.adafruit.com/product/2278 $40, 64x32 with 4 mm pitch.
• https://www.aliexpress.us/item/3256808335479840.html, $18, 64x32 with 4 mm pitch.

Here’s the AliExpress one in use:

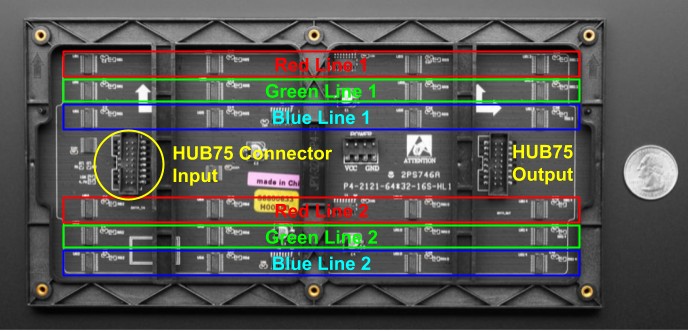

Using the AdaFruit version, here’s what the back of the panel looks like, annotated:

Source: AdaFruit.

Notice the little vertical chips that are highlighted in Red, Green, Blue above. There are 4 x 3 x 2 of them.

The HUB75 connector is an industry ad-hoc connector. As far as I can tell, there is no solid specification anywhere to be found. Instead, it seems to have evolved over the years, and used more or less in a compatible way.

A bit more progress on the Distant Signal project: the initial configuration script consisted of purely graphics primitives, and the automation would select which of the predetermined states to display.

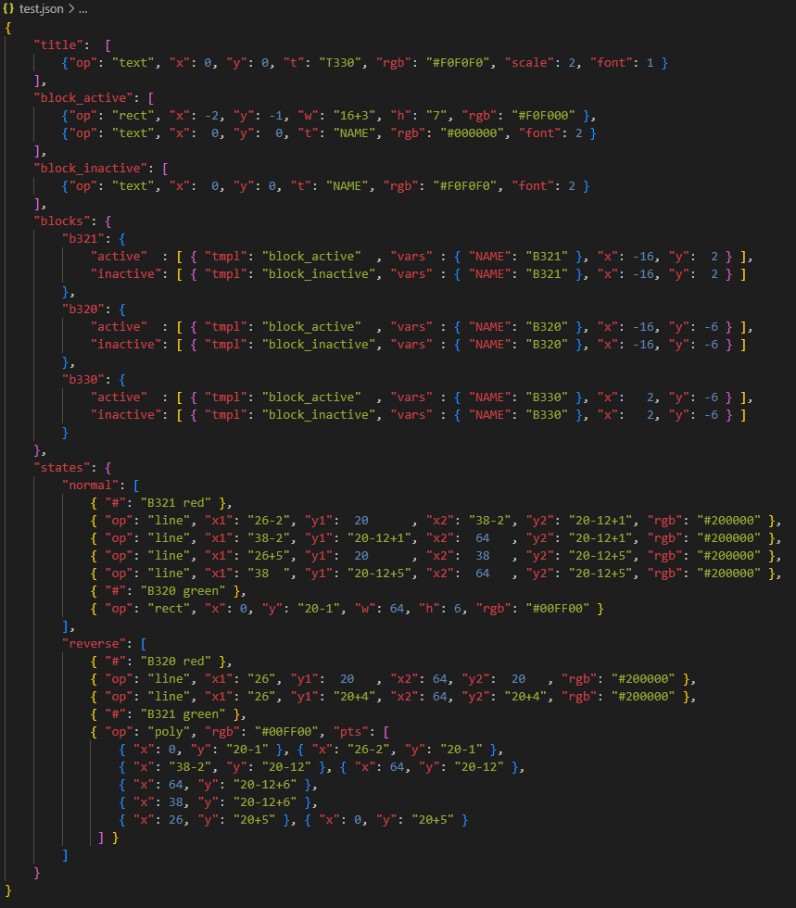

That’s good, but when I’m going to have several of these displays for several turnouts, I realize there’s a lot of repetition because each state represents the entire screen -- thus each state needs to repeat the title, or the block numbers, for example. Instead, the new direction is to have “layers” to avoid repetition:

• A title layer defines the display… title. That’s all.
• A “states” layer defines multiple track states for the given turnout (typically 2).
• A “blocks” layer defines the block numbers to draw next to the track, and that means we can now have active vs inactive blocks and thus render them accordingly.

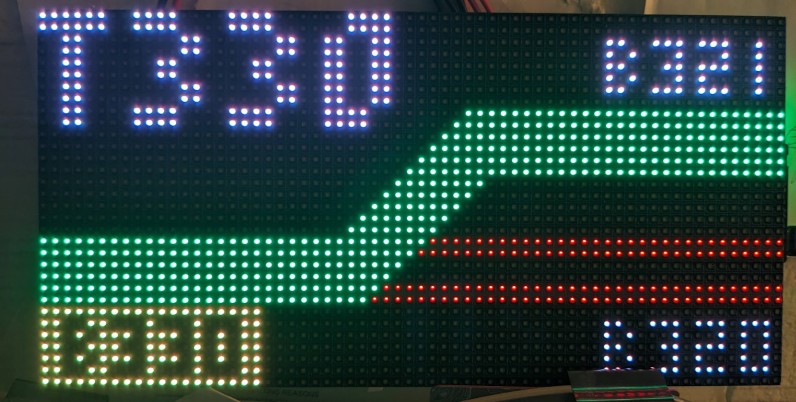

With that approach, we can change the display to look like this:

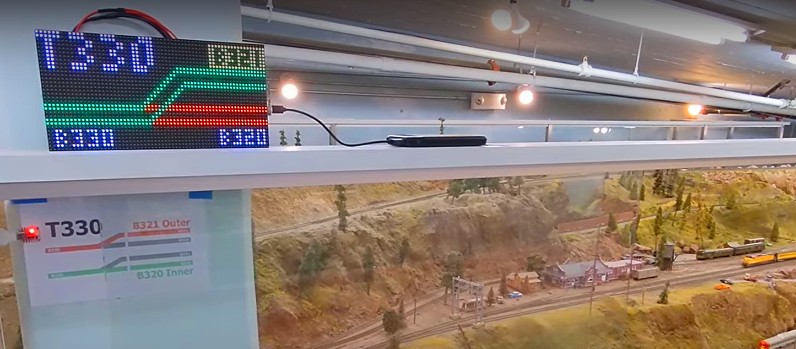

[Edit: And future me even added a view of this panel with a further style update, seen here in-situ:]

Here’s a new project, Distant Signal: https://github.com/model-railroad/distant-signal

The goal of this project is to display the state of a remote model-railroad turnout on a LED Matrix Display. That’s obviously the “phase 2” of the single-LED ESP32 display I toyed with last week.

The hardware for this project is an AdaFruit MatrixPortal ESP32-S3 driving an AdaFruit 64x32 RGB LED Matrix - or more exactly some clone/equivalent of such.

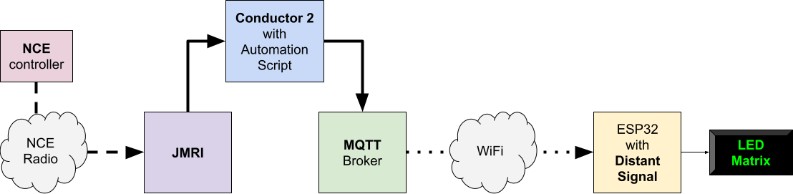

Overall, the project works exactly the same as the single-LED version did:

Here’s the first iteration of the display:

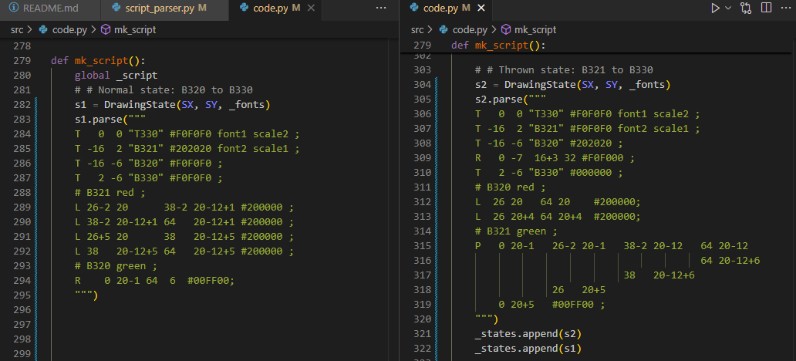

This version uses a basic text-based configuration script to define the content of the screen:

That’s the configuration script that the Conductor automation program would send to the display to initialize it. The configuration script defines several “states”, for example “T330 normal” vs “T330 reverse”. Each state is describes the entire content of a screen using a set of graphic primitives -- line, rect, text, and polygon.

Then MQTT would be used to select which state to display -- in this case turnout states, as the automation dictates which state should be displayed based on turnout sensor feedback. From the ESP32 point of view, the behavior is totally agnostic -- all it does is display a full screen of “something”.

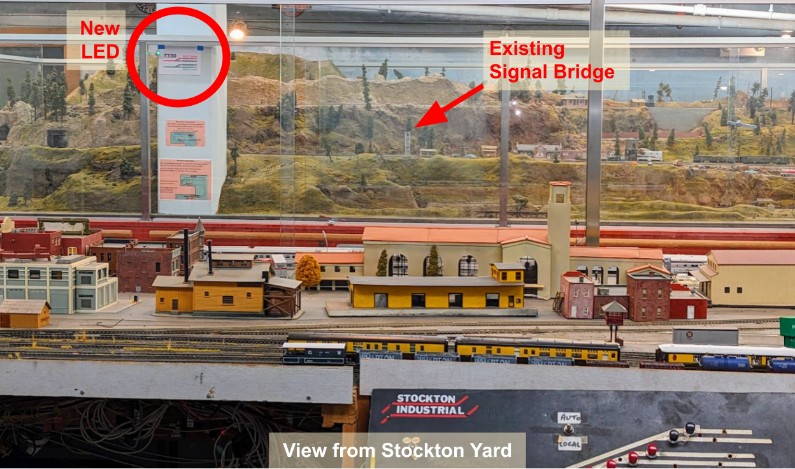

Here’s a new a experiment: we now have a new visual indicator of the position of the Sonora turnout T330, designed to be visible by the Saturday operators when standing at the Stockton Yard:

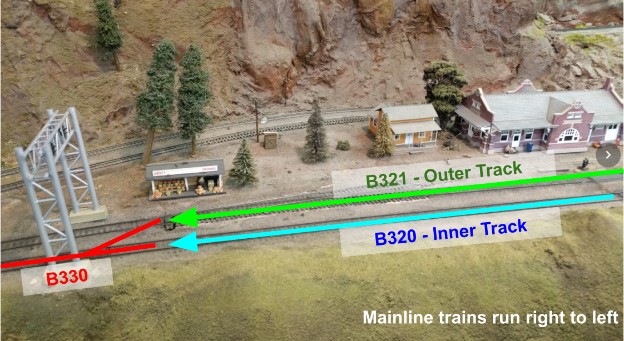

Sonora has the two mainline tracks that merge together at turnout T330, and there’s a signal bridge with signals that clearly indicate the position of the turnout. The problem is that the signal bridge is not visible from across the layout, where the operators are typically standing.

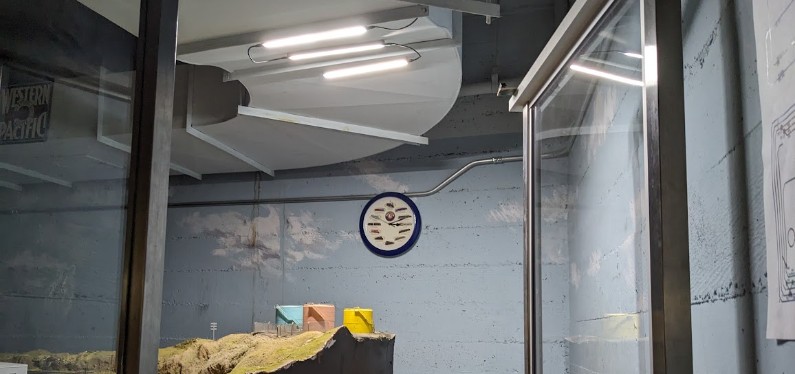

Thus this new experimental signal is located on the pillar -- it’s facing the operators, and it’s high behind the window, hopefully high enough to be visible even when the public is present in front of the layout.

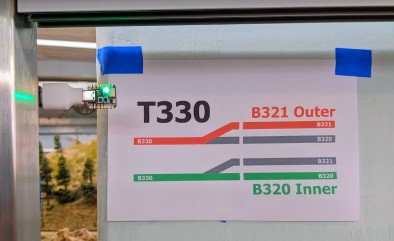

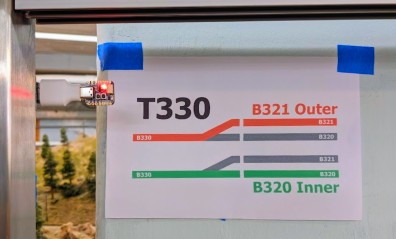

I kept the new signal as simple as possible: green indicates the turnout is aligned straight for the “inner” track (block B320) and red indicates it is thrown for the “outer track” (block B321). Behind the signal, I placed a short explanation to hopefully make it clear what the color represents:

Back in December I was fighting with the spurious block activation of block B360. This would break the automation, and I would have no real report about it. Of course I already have a custom web dashboard that shows me the status of the automation and after-the-fact analytics -- what kind of automation would that be without such dashboards? Still I figured having a “realtime” notification on failure would be better than periodically checking my custom dashboard.

I could add some email-sending capabilities to Conductor 2, but that’s something I’d rather not do as it’s a bit of its own rabbit hole. The Debian Linux computer running Conductor 2 has no email capabilities, and I intend to keep it that way -- I treat it as what it is, namely an unsecured box in a public museum with fairly loose access, thus it’s basically a DMZ.

Instead what I want is for the emails to be generated by some server that I control. All I need is to get the data to that server. I could piggyback the errors on the JSON used by the RTAC status server. That would almost be too logical. Or I could publish it on the MQTT broker and then proxy it over to the email server. Well, if I’m going that route, what about RSyslog?

So that’s what I did, and I get this kind of beautiful emails:

Here’s how I implemented this:

These two commits address the recent issue of spurious block activation breaking the automation.

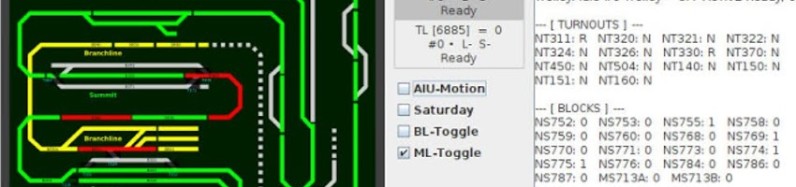

Recently a new sensor-related issue arose with block B360. Last time, it was because some track was occupied somewhere else on the layout. This time, the issue is different: the automated passenger train is going to Summit (the top of the mountain), where it stops and returns back down. It goes through these blocks:

B370 (Summit) → B360 → B340 → B330 → B321 → B311 (Station)

The new problem with block B360: after the train has left block B360 and entered block B340, block B360 should register as “empty”. After all, the train isn’t on the block anymore. But from time to time -- very rarely -- the block will keep staying on, sometimes as long as a minute and half! Now two adjacent blocks can be active at the same time -- that happens when a train crosses a block boundary. But once the train reaches block B330, it is an error for block B360 to still be active.

When that happens, the automation enters the error mode, stops the train, and tries to do a recovery. Interestingly as soon as the train stops, that “frees” block B360 too. Thus the recovery mechanism notices that only block B330 is active, deduces the train must be there, and brings it back home. From a viewer point of view, that all happens almost instantly so it’s hard to notice visually that something went wrong. But from a software perspective, it was all wrong for sure.
